Industrial-Grade 3D Printer
Thunder
Pro
V3

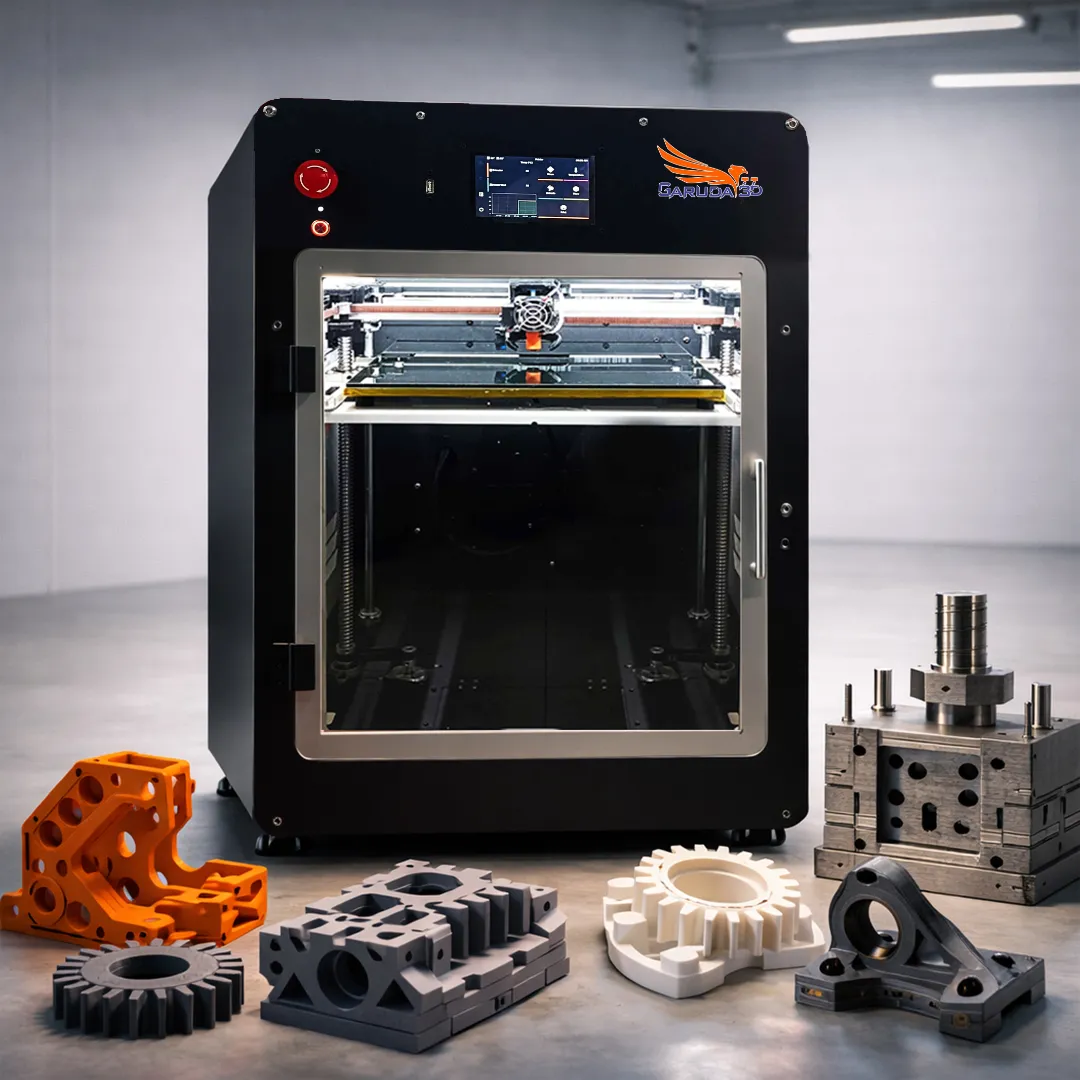

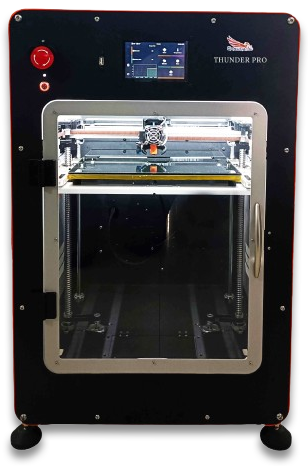

Thunder Pro V3 Professional 3D Printer
Industrial-grade FFF 3D printer designed for engineers, research labs and manufacturing.
300 × 300 × 300 mm Build Volume
High-Speed Klipper Firmware
Industrial Aluminum Frame
Precision Linear Rails & Ball Screws
Core Features
Engineered for Industrial-Grade Performance
Every component selected for precision, durability, and real-world performance — Not just spec sheet numbers.
Klipper Firmware
Advanced motion control with input shaping and pressure tuning — delivering high-speed printing without compromising surface quality.

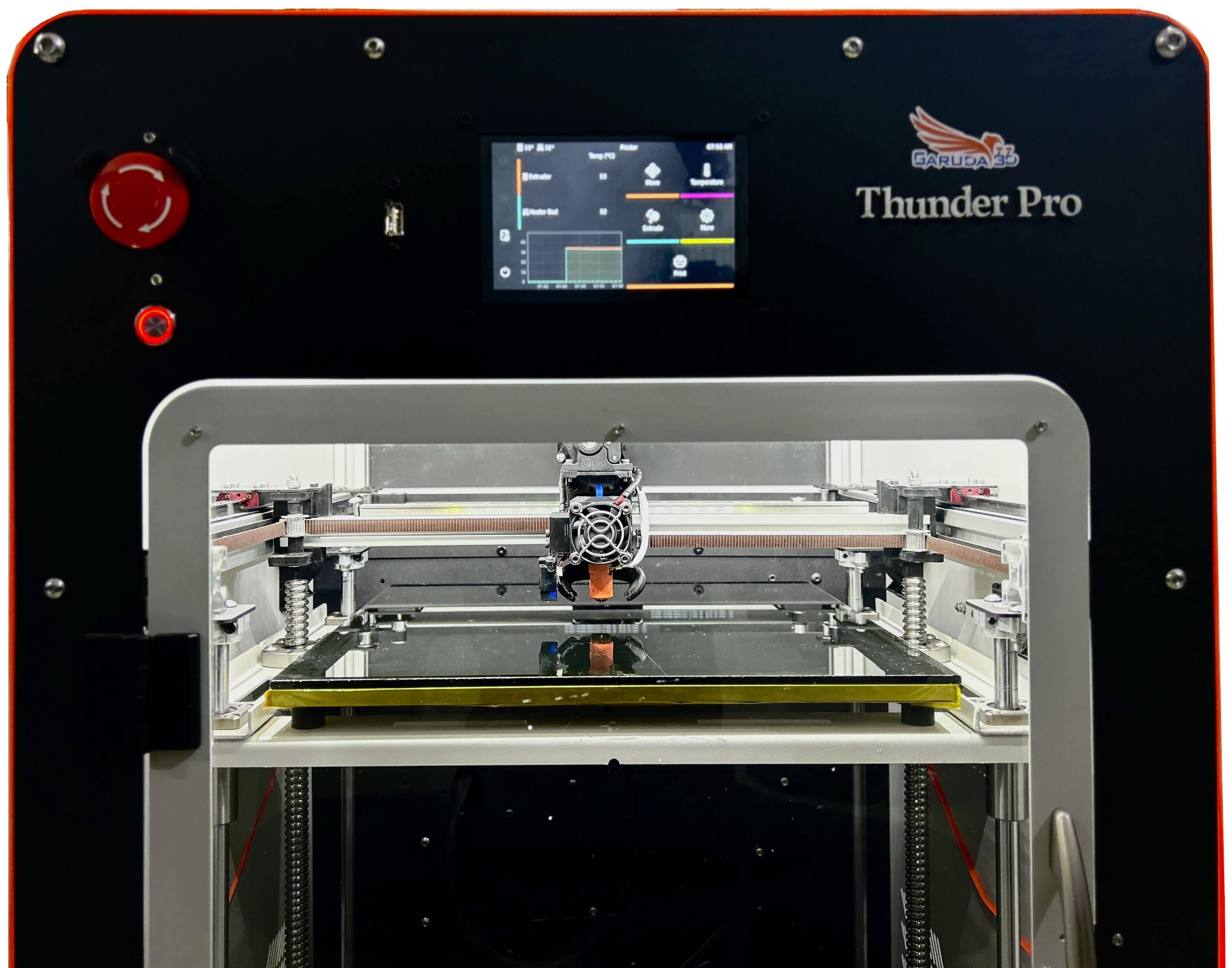

Plug & Print Ready
Ships fully assembled and individually tested for reliability. ABL probe, 5" HDMI touchscreen, HEPA filter, and Klipper pre-configured. Unbox and print.
CoreXY Architecture
High-speed CoreXY motion system reduces print time by up to 40% while maintaining dimensional accuracy.
Industrial Linear Rails
Hiwin-grade linear rails on all axes with zero backlash. Sub-0.1mm repeatability, built for 10,000+ hours of operational service life.
32-Bit Control Board
High-performance 32-bit MCU manages motion planning, heating, and monitoring simultaneously — smooth and bottleneck-free.
Smart Print Failure Detection
Built-in camera with intelligent monitoring detects print failures and runout — pausing automatically before material is wasted.
Specifications
Full technical data
Every parameter that matters for professional-grade 3D printing work.
Motion & Print
Architecture
CoreXY
Guide Rails
Precision Hiwin / PMI
Z-Axis Drive
Precision Ball Screws
Extruder
Dual Gear Direct Drive
Build Volume
300 × 300 × 300 mm
Layer Resolution
0.05 – 0.35 mm
Nozzle
0.4 mm std

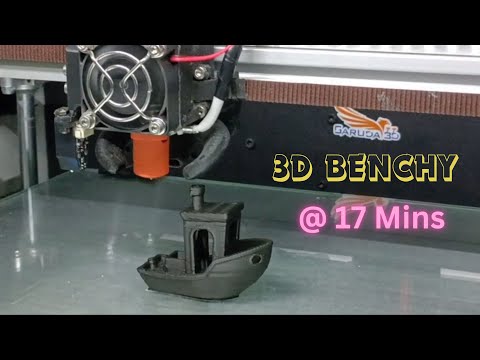

Benchy Time
~17 minutes
Thermal
Max Hotend
300°C
Heated Bed
110°C
Bed Material
Aero-grade Aluminium
Enclosure
Fully Thermal Enclosed
Repeatability
±0.1 mm
Electronics & Firmware
Firmware
Klipper Native
Control Board
32-bit High-Perf MCU
Display
5" HDMI Touchscreen
Connectivity
LAN · Mobile · Browser
Interface
Klipper Mainsail / Fluid
Safety & Sensors
Bed Leveling
Auto ABL Probe
Camera
Built-in Monitoring
Runout / Jam Sensor
Yes — Auto-pause
Filtration
HEPA Filter
Accel. Sensor
Yes — Input Shaping
Material Compatibility
Print what others can't
300°C hotend and fully enclosed chamber unlock engineering-grade filaments far beyond standard PLA.

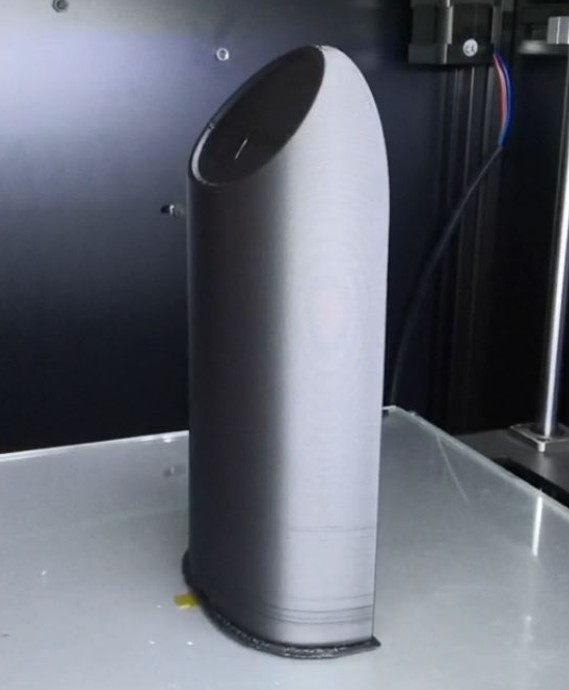

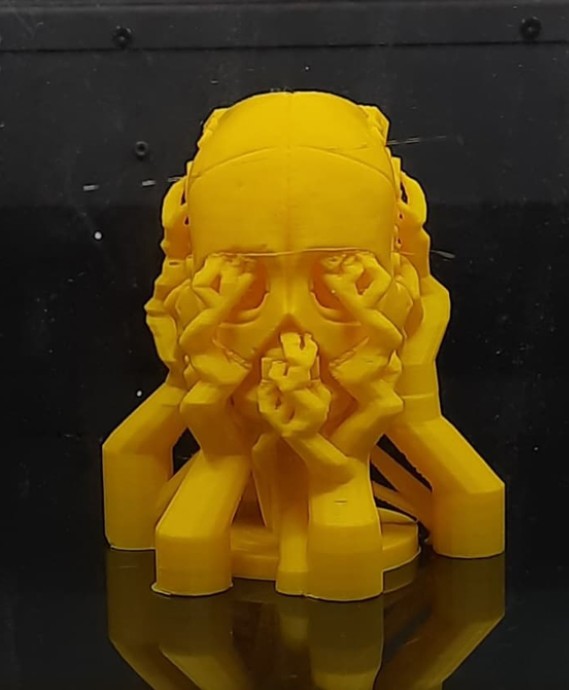

PLA
Polylactic Acid
≤ 220°C
Standard and specialty blends. Best surface finish for any geometry.

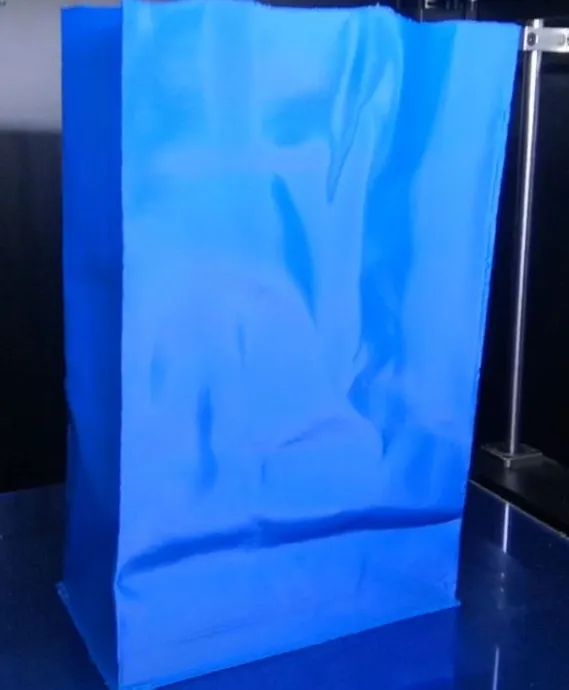

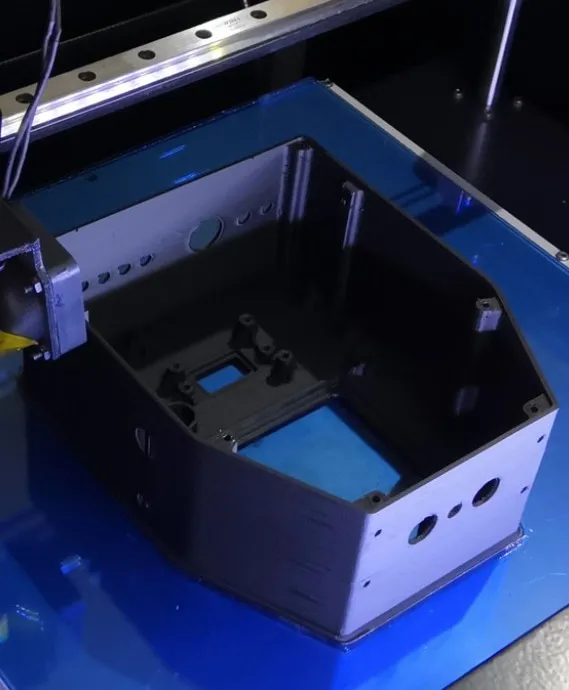

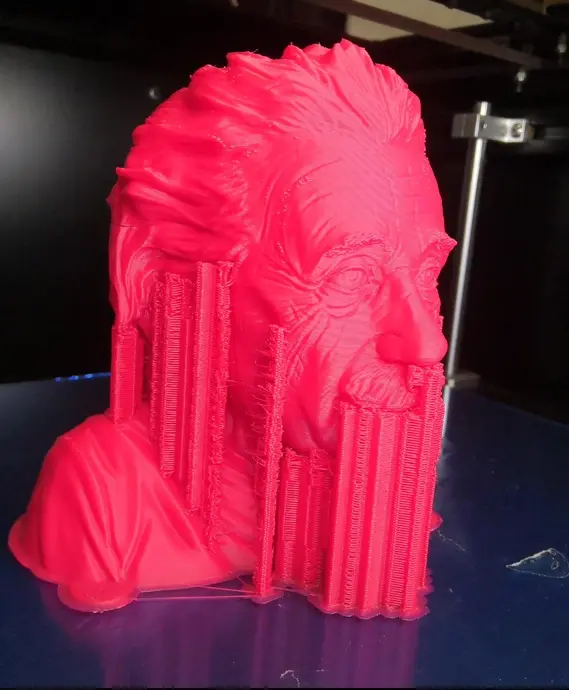

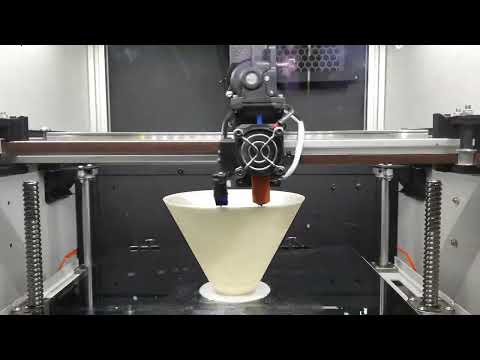

ABS
Acrylonitrile Butadiene Styrene
220–260°C
Heat-resistant and tough. The enclosure eliminates warping completely.

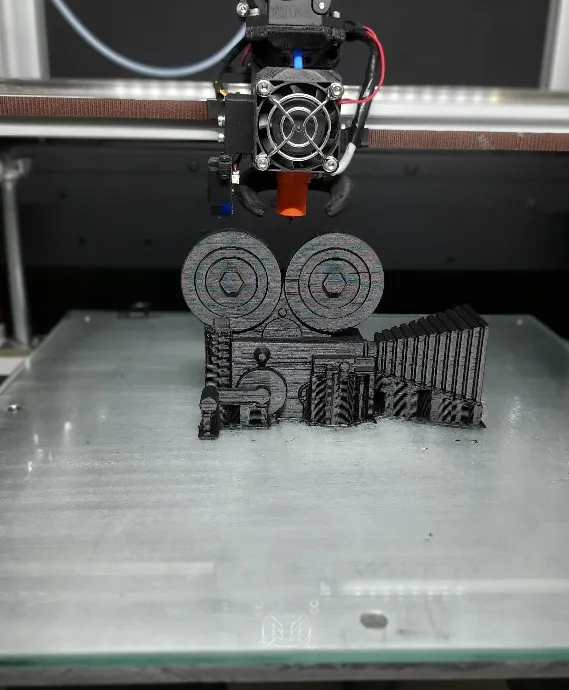

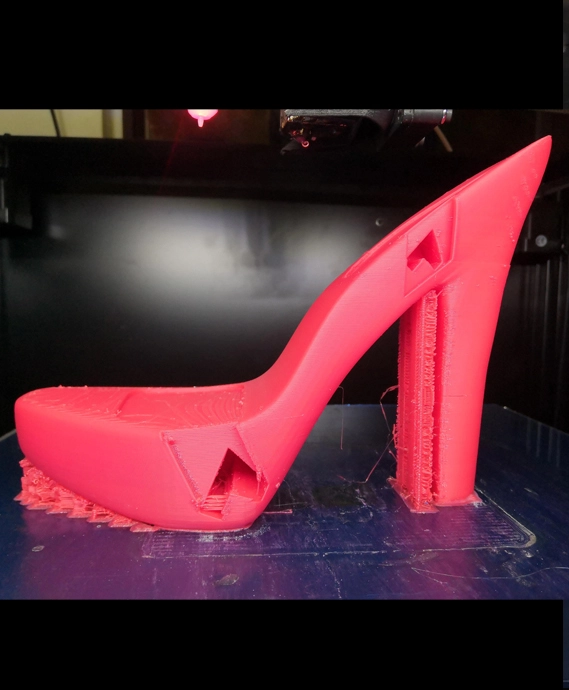

PETG
Polyethylene Terephthalate Glycol
230–260°C
Chemical-resistant, food-safe grades available. Outstanding adhesion.
TPU
Thermoplastic Polyurethane
220–240°C
Flexible, rubber-like parts. Direct drive handles flex reliably.

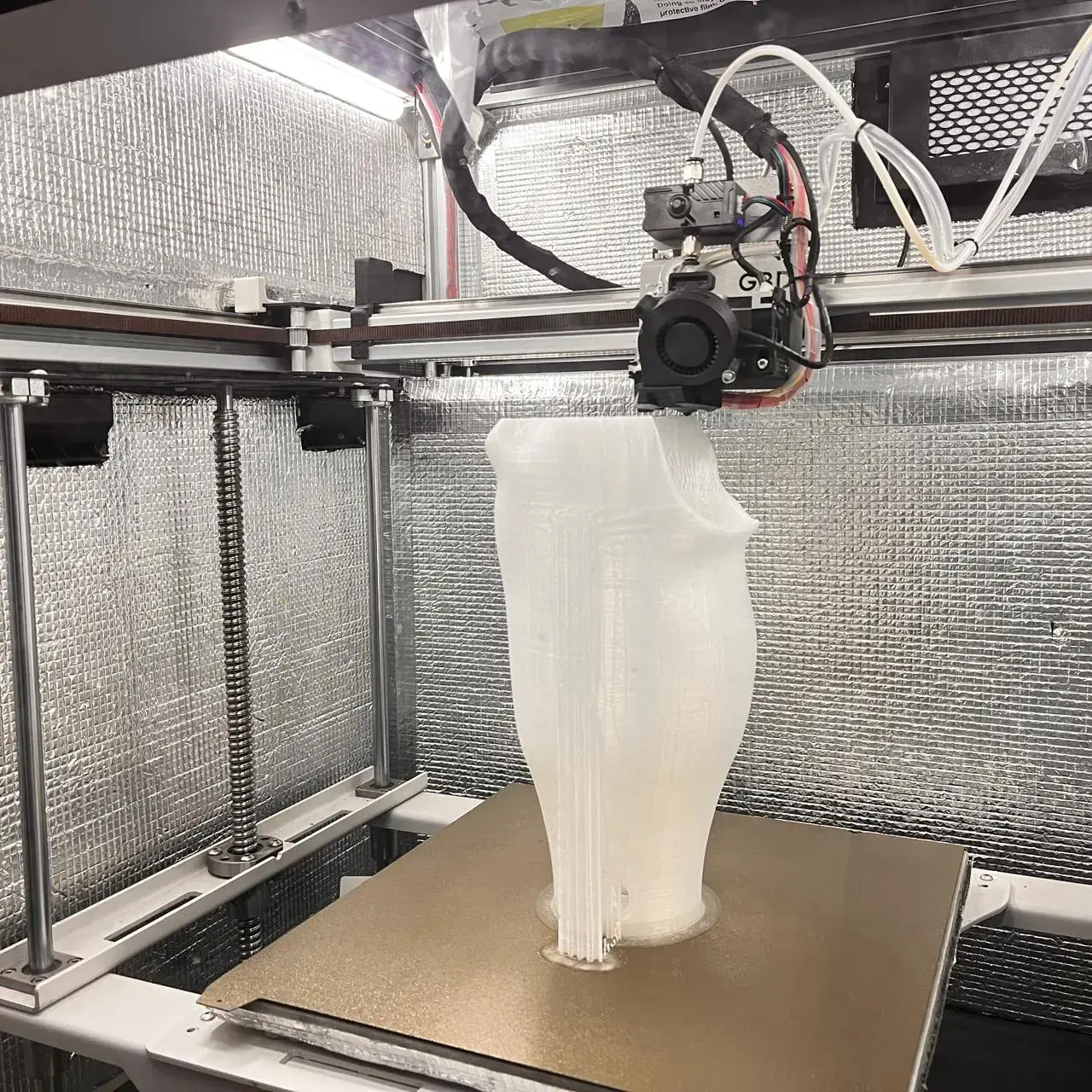

Nylon
Polyamide
240–280°C
Engineering-grade. Superior fatigue resistance and dimensional stability.
CF
Carbon Fibre Composite
260–290°C
Aerospace strength-to-weight ratio. Stiff, light, and visually striking.
GF
Glass Fiber Reinforced
190–220°C
Glass-fiber reinforced filament that offers high strength, stiffness, and improved dimensional stability for functional 3D printed parts.
ASA
Acrylonitrile Styrene Acrylate
260–300°C
UV- and weather-resistant filament designed for durable outdoor 3D printed parts with good heat resistance.
Firmware
Klipper Firmware — High-Speed Control, Fully Optimized
"Real-time motion tuning eliminates vibration and enables faster print speeds without quality loss."
Input Shaping
ADXL345 accelerometer built-in. Automatically measures and eliminates resonance on both axes to remove ghosting at high speeds.
Pressure Advance
Manages filament pressure for sharp corners and clean extrusion. No blobs, ooze, or rounding — even at speed.
Browser & Mobile Access
Control via Mainsail or Fluidd from any device on your local network. Monitor, adjust, and manage prints from anywhere in your workspace.
Pre-configured & Safe
All safety macros, thermal runaway protection, and calibration configured at the factory. Fully tested before every unit ships.
01# Garuda3D Thunder Pro
V3
02
03[printer]
04 kinematics: corexy
05 max_velocity:
500
06 max_accel: 10000
07 max_z_velocity:
15
08
09[input_shaper]
10 shaper_type_x:
mzv
11 shaper_freq_x:
68.4
12 shaper_type_y:
mzv
13 shaper_freq_y:
52.8
14
15[extruder]
16 max_temp: 300
17 pressure_advance:
0.04
18
19[heater_bed]
20 max_temp: 110
21
22# ✓ Printing — 17 min
Benchy
Applications
Where it does its best work
From university labs to factory floors — the Thunder Pro V3 excels wherever serious 3D printing gets done.
⚙️
01 / 6
Engineering & Prototyping
Rapid functional prototyping using engineering-grade materials — reducing development cycles from weeks to days.
🏭
02 / 6
Small-Batch Production
Low-volume production without expensive tooling. Jigs, fixtures, and custom parts exactly when and where you need them.
🚀
03 / 6
Aerospace & Automotive
Carbon-fibre composite parts for weight-critical applications. For teams that measure success in grams and megapascals.
🎓
04 / 6
Education & Research
Adopted by NITs, IITs, and leading universities for research, robotics development, and engineering innovation.
🤖
05 / 6
Robotics & Electronics
Custom housings, wear-resistant gears, and mechanical assemblies — in-house in hours, not outsourced in weeks.
🎨
06 / 6
Design & Creative
Bespoke décor, wearable tech, and high-end custom pieces where precision engineering meets creative expression.
